M8 - M48 (0,63t - 20t)

VLBG-PLUS

Menetes

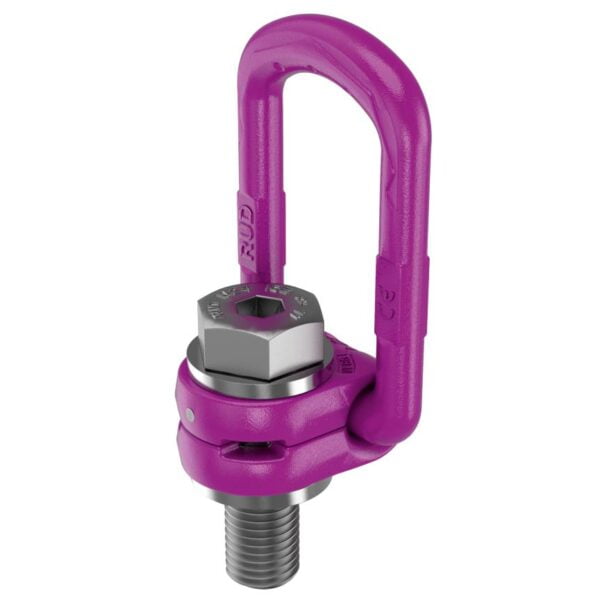

RUD teheremelő szem PLUSZ teherbírással

Nagy teherbírás kis menetátmérőnél
Rendkívül kompakt
Húzási irányban állítható
Csak egy menetes vagy átmenő furat szükséges
Változatos csavarhossz
RUD univerzális csavar, elveszíthetetlen, 100%-ban repedésvizsgált, Corrud felületvédelem
ICE pink porfestett felület
Körköteleket kímélő felfekvő felület

Méret

M8 (0,63t)
M10 (0,9t)
M12 (1,35t)
M16 (2t)
M20 (3,5t)
M24 (4,5t)
M30 (6,7t)
M36 (7t) (speciális csavarral)
M36 (8t)
M42 (10t)
M42 (15t)
M48 (20t)

Hosszúmenetes

Menethossz(mm)

Product total

Options total

Grand total

Kezelési útmutató (EN)

VLBG-PLUS 0,63t M8 ICE csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.30 kg	Value0.66 lbs
AttributeTeherbírás	Value630 kg	Value1390 lbs
AttributeT	Value75 mm	Value2-15/16"
AttributeA	Value30 mm	Value1-3/16"
AttributeB	Value52 mm	Value2-1/8"
AttributeC	Value34 mm	Value1-11/32"
AttributeD	Value24 mm	Value15/16"
AttributeE	Value40 mm	Value1-9/16"
AttributeF	Value10 mm	Value3/8"
AttributeG	Value29 mm	Value1-5/32"
AttributeH	Value11 mm	Value7/16"
AttributeI	Value75 mm	Value2-15/16"
AttributeK	Value45 mm	Value1-25/32"
AttributeL	Value40 mm	Value1-9/16"
AttributeM	ValueM8 mm	ValueM8
AttributeN	Value32 mm	Value1-1/4"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 0,9t M10 ICE csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.31 kg	Value0.68 lbs
AttributeTeherbírás	Value900 kg	Value1980 lbs
AttributeT	Value75 mm	Value2-15/16"
AttributeA	Value30 mm	Value1-3/16"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value34 mm	Value1-11/32"
AttributeD	Value24 mm	Value15/16"
AttributeE	Value39 mm	Value1-9/16"
AttributeF	Value10 mm	Value3/8"
AttributeG	Value29 mm	Value1-5/32"
AttributeH	Value15 mm	Value19/32"
AttributeI	Value75 mm	Value2-15/16"
AttributeK	Value45 mm	Value1-25/32"
AttributeL	Value44 mm	Value1-3/4"
AttributeM	ValueM10 mm	ValueM10
AttributeN	Value32 mm	Value1-1/4"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 1,35t M12 ICE csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.34 kg	Value0.75 lbs
AttributeTeherbírás	Value1350 kg	Value2970 lbs
AttributeT	Value75 mm	Value2-15/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value34 mm	Value1-11/32"
AttributeD	Value26 mm	Value1"
AttributeE	Value38 mm	Value1-1/2"
AttributeF	Value10 mm	Value3/8"
AttributeG	Value29 mm	Value1-5/32"
AttributeH	Value18 mm	Value23/32"
AttributeI	Value75 mm	Value2-15/16"
AttributeK	Value45 mm	Value1-25/32"
AttributeL	Value47 mm	Value1-7/8"
AttributeM	ValueM12 mm	ValueM12
AttributeN	Value32 mm	Value1-1/4"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 2t M16 ICE csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.55 kg	Value1.21 lbs
AttributeTeherbírás	Value2000 kg	Value4400 lbs
AttributeT	Value85 mm	Value3-11/32"
AttributeA	Value34,5 mm	Value1-5/16"
AttributeB	Value56 mm	Value2-3/16"
AttributeC	Value38 mm	Value1-1/2"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value39 mm	Value1-9/16"
AttributeF	Value13,5 mm	Value17/32"
AttributeG	Value36 mm	Value1-27/64"
AttributeH	Value22 mm	Value7/8"
AttributeI	Value86 mm	Value3-3/8"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value58 mm	Value2-9/32"
AttributeM	ValueM16 mm	ValueM16
AttributeN	Value38 mm	Value1-1/2"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 3,5t M20 ICE csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value1.30 kg	Value2.87 lbs
AttributeTeherbírás	Value3500 kg	Value7700 lbs
AttributeT	Value110 mm	Value4-11/32"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value17 mm	Value43/64"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value32 mm	Value1-1/4"
AttributeI	Value113 mm	Value4-7/16"
AttributeK	Value64 mm	Value2-1/2"
AttributeL	Value75 mm	Value2-15/16"
AttributeM	ValueM20 mm	ValueM20
AttributeN	Value48 mm	Value1-7/8"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 4,5t M24 ICE csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value1.40 kg	Value3.09 lbs
AttributeTeherbírás	Value4500 kg	Value9920 lbs
AttributeT	Value125 mm	Value4-15/16"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value67 mm	Value2-5/8"
AttributeF	Value17 mm	Value23/32"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value37 mm	Value1-7/16"
AttributeI	Value130 mm	Value5-1/8"
AttributeK	Value78 mm	Value3-1/16"
AttributeL	Value80 mm	Value3-1/8"
AttributeM	ValueM24 mm	ValueM24
AttributeN	Value48 mm	Value1-7/8"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 6,7t M30 RUD csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value3.22 kg	Value7.10 lbs
AttributeTeherbírás	Value6700 kg	Value14770 lbs
AttributeT	Value147 mm	Value5-25/32"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value103 mm	Value4-1/16"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value67 mm	Value2-5/8"
AttributeF	Value22,5 mm	Value7/8"
AttributeG	Value61 mm	Value2-13/32"
AttributeH	Value49 mm	Value1-15/16"
AttributeI	Value151 mm	Value5-15/16"
AttributeK	Value80 mm	Value3-1/8"
AttributeL	Value110 mm	Value4-11/32"
AttributeM	ValueM30 mm	ValueM30
AttributeN	Value67 mm	Value2-5/8"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 7t M36 Speciális csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value3.40 kg	Value7.50 lbs
AttributeTeherbírás	Value7000 kg	Value15430 lbs
AttributeT	Value146 mm	Value5-3/4"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value103 mm	Value4-1/16"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value74 mm	Value2-29/32"
AttributeF	Value22,5 mm	Value7/8"
AttributeG	Value55 mm	Value2-5/32"
AttributeH	Value52 mm	Value2-1/16"
AttributeI	Value151 mm	Value5-15/16"
AttributeK	Value80 mm	Value3-1/8"
AttributeL	Value107 mm	Value4-7/32"
AttributeM	ValueM36 mm	ValueM36
AttributeN	Value67 mm	Value2-5/8"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 8t M36 RUD csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value5.97 kg	Value13.23 lbs
AttributeTeherbírás	Value8000 kg	Value17630 lbs
AttributeT	Value196 mm	Value7-3/4"
AttributeA	Value77 mm	Value3"-1/32"
AttributeB	Value122 mm	Value4-13/16"
AttributeC	Value82 mm	Value3-1/4"
AttributeD	Value70 mm	Value2-3/4"
AttributeE	Value97 mm	Value3-13/16"
AttributeF	Value26,5 mm	Value1-3/64"
AttributeG	Value77 mm	Value3"-1/32"
AttributeH	Value63 mm	Value2-15/32"
AttributeI	Value205 mm	Value8-1/16"
AttributeK	Value113 mm	Value4-11/32"
AttributeL	Value140 mm	Value5-1/2"
AttributeM	ValueM36 mm	ValueM36
AttributeN	Value79 mm	Value3-7/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 10t M42 RUD csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value6.60 kg	Value14.55 lbs
AttributeTeherbírás	Value10000 kg	Value22040 lbs
AttributeT	Value196 mm	Value7-3/4"
AttributeA	Value77 mm	Value3"-1/32"
AttributeB	Value122 mm	Value4-13/16"
AttributeC	Value82 mm	Value3-1/4"
AttributeD	Value70 mm	Value2-3/4"
AttributeE	Value94 mm	Value3-11/16"
AttributeF	Value26,5 mm	Value1-3/64"
AttributeG	Value77 mm	Value3"-1/32"
AttributeH	Value73 mm	Value2-7/8"
AttributeI	Value205 mm	Value8-1/16"
AttributeK	Value113 mm	Value4-11/32"
AttributeL	Value150 mm	Value5-7/8"
AttributeM	ValueM42 mm	ValueM42
AttributeN	Value79 mm	Value2-3/4"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 15t M42 RUD csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value10.90 kg	Value24.03 lbs
AttributeTeherbírás	Value15000 kg	Value33070 lbs
AttributeT	Value222 mm	Value8-3/4"
AttributeA	Value95 mm	Value3-3/4"
AttributeB	Value156 mm	Value6-5/32"
AttributeC	Value100 mm	Value3-15/16"
AttributeD	Value85 mm	Value3-11/32"
AttributeE	Value109 mm	Value4-5/16"
AttributeF	Value36 mm	Value1-27/64"
AttributeG	Value87 mm	Value3-7/16"
AttributeH	Value63 mm	Value2-15/32"
AttributeI	Value230 mm	Value9-1/16"
AttributeK	Value130 mm	Value5-1/8"
AttributeL	Value150 mm	Value5-7/8"
AttributeM	ValueM42 mm	ValueM42
AttributeN	Value100 mm	Value3-15/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

VLBG-PLUS 20t M48 RUD csavarral

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value11.60 kg	Value25.57 lbs
AttributeTeherbírás	Value20000 kg	Value44090 lbs
AttributeT	Value222 mm	Value8-3/4"
AttributeA	Value95 mm	Value3-3/4"
AttributeB	Value156 mm	Value6-5/32"
AttributeC	Value100 mm	Value3-15/16"
AttributeD	Value95 mm	Value3-3/4"
AttributeE	Value105 mm	Value4-1/8"
AttributeF	Value36 mm	Value1-27/64"
AttributeG	Value87 mm	Value3-7/16"
AttributeH	Value73 mm	Value2-7/8"
AttributeI	Value230 mm	Value9-1/16"
AttributeK	Value130 mm	Value5-1/8"
AttributeL	Value160 mm	Value6-13/32"
AttributeM	ValueM48 mm	ValueM48
AttributeN	Value100 mm	Value3-15/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)
