M6 - M64 (0,1t - 20t)

VRS

Menetes

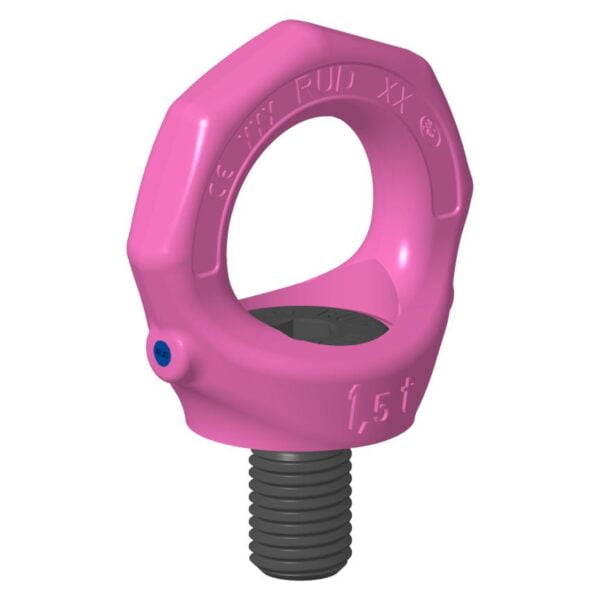

Starpoint – könnyen a húzás irányába állítható

Sokkal nagyobb teherbírású, mint a DIN580 szemescsavar
4-szeres biztonság
Elveszíthetetlen speciális belső hatszög csavar, 100%-ban repedésvizsgált
Külön érdeklődésre hosszabb menettel is szállítható
Külön érdeklődésre más méretek ill. UNC menetek

Méret

M6 (0,1t)
M8 (0,3t)
M10 (0,4t)
M12 (0,75t)
M14 (0,75t)
M16 (1,5t)
M18 (1,5t)
M20 (2,3t)
M22 (2,3t)
M24 (3,2t)
M27 (3,2t)
M30 (4,5t)
M33 (4,5t)
M36 (7t)
M42 (9t)
M48 (12t)
M56 (16t)
M64 (20t)

Törlés

Hosszúmenetes

Menethossz(mm)

Product total

Options total

Grand total

Kezelési útmutató (EN)

STARPOINT VRS-F M6 0,1t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.07 kg	Value0.15 lbs
AttributeTeherbírás	Value100 kg	Value220 lbs
AttributeT	Value28 mm	Value1-1/8"
AttributeB	Value9 mm	Value11/32"
AttributeC	Value7 mm	Value9/32"
AttributeD	Value20 mm	Value3/4"
AttributeE	Value23 mm	Value29/32"
AttributeG	Value28 mm	Value1-1/8"
AttributeI	Value13 mm	Value1/2"
AttributeK	Value37 mm	Value1-7/16"
AttributeL	Value9 mm	Value11/32"
AttributeM	ValueM 6 mm	ValueM 6
AttributeN	Value6 mm	Value15/64"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M8 0,3t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.12 kg	Value0.26 lbs
AttributeTeherbírás	Value300 kg	Value660 lbs
AttributeT	Value35 mm	Value1-3/8"
AttributeB	Value11 mm	Value7/16"
AttributeC	Value9 mm	Value11/32"
AttributeD	Value25 mm	Value63/64"
AttributeE	Value25 mm	Value63/64"
AttributeG	Value30 mm	Value1-3/16"
AttributeI	Value16,3 mm	Value41/64"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value12 mm	Value15/32"
AttributeM	ValueM8 mm	ValueM8
AttributeN	Value6 mm	Value15/64"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M10 0,4t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.12 kg	Value0.26 lbs
AttributeTeherbírás	Value400 kg	Value880 lbs
AttributeT	Value35 mm	Value1-3/8"
AttributeB	Value11 mm	Value7/16"
AttributeC	Value9 mm	Value11/32"
AttributeD	Value25 mm	Value63/64"
AttributeE	Value25 mm	Value63/64"
AttributeG	Value30 mm	Value1-3/16"
AttributeI	Value16,3 mm	Value41/64"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value15 mm	Value19/32"
AttributeM	ValueM10 mm	ValueM10
AttributeN	Value6 mm	Value15/64"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M12 0,75t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.21 kg	Value0.46 lbs
AttributeTeherbírás	Value750 kg	Value1650 lbs
AttributeT	Value42 mm	Value1-21/32"
AttributeB	Value13 mm	Value1/2"
AttributeC	Value10 mm	Value3/8"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value30 mm	Value1-3/16"
AttributeG	Value34 mm	Value1-11/32"
AttributeI	Value19,8 mm	Value25/32"
AttributeK	Value56 mm	Value2-3/16"
AttributeL	Value18 mm	Value23/32"
AttributeM	ValueM12 mm	ValueM12
AttributeN	Value8 mm	Value5/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M14 0,75t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.22 kg	Value0.49 lbs
AttributeTeherbírás	Value750 kg	Value1650 lbs
AttributeT	Value42 mm	Value1-21/32"
AttributeB	Value13 mm	Value1/2"
AttributeC	Value10 mm	Value3/8"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value30 mm	Value1-3/16"
AttributeG	Value34 mm	Value1-11/32"
AttributeI	Value19,8 mm	Value25/32"
AttributeK	Value56 mm	Value2-3/16"
AttributeL	Value18 mm	Value23/32"
AttributeM	ValueM14 mm	ValueM14
AttributeN	Value8 mm	Value5/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M16 1,5t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.36 kg	Value0.79 lbs
AttributeTeherbírás	Value1500 kg	Value3300 lbs
AttributeT	Value49 mm	Value1-15/16"
AttributeB	Value15 mm	Value19/32"
AttributeC	Value13 mm	Value1/2"
AttributeD	Value35 mm	Value1-3/8"
AttributeE	Value36 mm	Value1-27/64"
AttributeG	Value40 mm	Value1-9/16"
AttributeI	Value23,5 mm	Value59/64"
AttributeK	Value65 mm	Value2-9/16"
AttributeL	Value24 mm	Value15/16"
AttributeM	ValueM16 mm	ValueM16
AttributeN	Value10 mm	Value3/8"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M18 1,5t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.39 kg	Value0.86 lbs
AttributeTeherbírás	Value1500 kg	Value3300 lbs
AttributeT	Value49 mm	Value1-15/16"
AttributeB	Value15 mm	Value19/32"
AttributeC	Value13 mm	Value1/2"
AttributeD	Value35 mm	Value1-3/8"
AttributeE	Value36 mm	Value1-27/64"
AttributeG	Value40 mm	Value1-9/16"
AttributeI	Value23,5 mm	Value59/64"
AttributeK	Value65 mm	Value2-9/16"
AttributeL	Value24 mm	Value15/16"
AttributeM	ValueM18 mm	ValueM18
AttributeN	Value10 mm	Value3/8"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M20 2,3t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.60 kg	Value1.32 lbs
AttributeTeherbírás	Value2300 kg	Value5070 lbs
AttributeT	Value58 mm	Value2-9/32"
AttributeB	Value17 mm	Value43/64"
AttributeC	Value16 mm	Value5/8"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value41 mm	Value1-5/8"
AttributeG	Value50 mm	Value1-31/32"
AttributeI	Value29,3 mm	Value1-5/32"
AttributeK	Value76 mm	Value3"
AttributeL	Value30 mm	Value1-3/16"
AttributeM	ValueM20 mm	ValueM20
AttributeN	Value12 mm	Value15/32"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M22 2,3t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value0.62 kg	Value1.48 lbs
AttributeTeherbírás	Value2300 kg	Value5070 lbs
AttributeT	Value58 mm	Value2-9/32"
AttributeB	Value17 mm	Value43/64"
AttributeC	Value16 mm	Value5/8"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value41 mm	Value1-5/8"
AttributeG	Value50 mm	Value1-31/32"
AttributeI	Value29,3 mm	Value1-5/32"
AttributeK	Value76 mm	Value3"
AttributeL	Value30 mm	Value1-3/16"
AttributeM	ValueM22 mm	ValueM22
AttributeN	Value12 mm	Value15/32"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M24 3,2t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value1.05 kg	Value2.31 lbs
AttributeTeherbírás	Value3200 kg	Value7050 lbs
AttributeT	Value70 mm	Value2-3/4"
AttributeB	Value20 mm	Value3/4"
AttributeC	Value19 mm	Value3/4"
AttributeD	Value49 mm	Value1-15/16"
AttributeE	Value51 mm	Value2"
AttributeG	Value60 mm	Value2-3/8"
AttributeI	Value35 mm	Value1-3/8"
AttributeK	Value92 mm	Value3-5/8"
AttributeL	Value36 mm	Value1-27/64"
AttributeM	ValueM24 mm	ValueM24
AttributeN	Value14 mm	Value9/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M27 3,2t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value1.18 kg	Value2.60 lbs
AttributeTeherbírás	Value3200 kg	Value7050 lbs
AttributeT	Value70 mm	Value2-3/4"
AttributeB	Value20 mm	Value3/4"
AttributeC	Value19 mm	Value3/4"
AttributeD	Value49 mm	Value1-15/16"
AttributeE	Value51 mm	Value2"
AttributeG	Value60 mm	Value2-3/8"
AttributeI	Value35 mm	Value1-3/8"
AttributeK	Value92 mm	Value3-5/8"
AttributeL	Value36 mm	Value1-27/64"
AttributeM	ValueM27 mm	ValueM27
AttributeN	Value14 mm	Value9/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M30 4,5t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value2.08 kg	Value4.59 lbs
AttributeTeherbírás	Value4500 kg	Value9920 lbs
AttributeT	Value87 mm	Value3-7/16"
AttributeB	Value26 mm	Value1"
AttributeC	Value24 mm	Value15/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value66 mm	Value2-5/8"
AttributeG	Value75 mm	Value2-15/16"
AttributeI	Value44 mm	Value1-3/4"
AttributeK	Value114 mm	Value4-1/2"
AttributeL	Value45 mm	Value1-25/32"
AttributeM	ValueM30 mm	ValueM30
AttributeN	Value17 mm	Value43/64"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M33 4,5t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value2.20 kg	Value4.85 lbs
AttributeTeherbírás	Value4500 kg	Value9920 lbs
AttributeT	Value87 mm	Value3-7/16"
AttributeB	Value26 mm	Value1"
AttributeC	Value24 mm	Value15/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value66 mm	Value2-5/8"
AttributeG	Value75 mm	Value2-15/16"
AttributeI	Value44 mm	Value1-3/4"
AttributeK	Value114 mm	Value4-1/2"
AttributeL	Value45 mm	Value1-25/32"
AttributeM	ValueM33 mm	ValueM33
AttributeN	Value17 mm	Value43/64"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M36 7t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value3.49 kg	Value7.69 lbs
AttributeTeherbírás	Value7000 kg	Value15430 lbs
AttributeT	Value104 mm	Value4-1/16"
AttributeB	Value32 mm	Value1-1/4"
AttributeC	Value29 mm	Value1-5/32"
AttributeD	Value73 mm	Value2-27/32"
AttributeE	Value76 mm	Value3"
AttributeG	Value98 mm	Value3-13/16"
AttributeI	Value53 mm	Value2-3/32"
AttributeK	Value135 mm	Value5-5/16"
AttributeL	Value54 mm	Value2-1/8"
AttributeM	ValueM36 mm	ValueM36
AttributeN	Value22 mm	Value7/8"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M42 9t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value5.40 kg	Value11.90 lbs
AttributeTeherbírás	Value9000 kg	Value19840 lbs
AttributeT	Value121 mm	Value4-3/4"
AttributeB	Value37 mm	Value1-7/16"
AttributeC	Value33 mm	Value1-5/16"
AttributeD	Value84 mm	Value3-5/16"
AttributeE	Value86 mm	Value3-3/8"
AttributeG	Value111 mm	Value4-13/32"
AttributeI	Value62 mm	Value2-7/16"
AttributeK	Value158 mm	Value6-1/4"
AttributeL	Value63 mm	Value2-15/32"
AttributeM	ValueM42 mm	ValueM42
AttributeN	Value24 mm	Value15/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M48 12t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value8.17 kg	Value18.01 lbs
AttributeTeherbírás	Value12000 kg	Value26450 lbs
AttributeT	Value138 mm	Value5-7/16"
AttributeB	Value42 mm	Value1-21/32"
AttributeC	Value42 mm	Value1-21/32"
AttributeD	Value94 mm	Value3-11/16"
AttributeE	Value100 mm	Value3-15/16"
AttributeG	Value128 mm	Value5"
AttributeI	Value70 mm	Value2-3/4"
AttributeK	Value180 mm	Value7-1/16"
AttributeL	Value72 mm	Value2-27/32"
AttributeM	ValueM48 mm	ValueM48
AttributeN	Value27 mm	Value1-1/16"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M56 16t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value12.97 kg	Value28.59 lbs
AttributeTeherbírás	Value16000 kg	Value35270 lbs
AttributeT	Value161 mm	Value6-11/32"
AttributeB	Value50 mm	Value1-31/32"
AttributeC	Value44 mm	Value1-3/4"
AttributeD	Value110 mm	Value4-11/32"
AttributeE	Value112 mm	Value4-13/32"
AttributeG	Value145 mm	Value5-11/16"
AttributeI	Value82 mm	Value3-1/4"
AttributeK	Value209 mm	Value8-1/4"
AttributeL	Value84 mm	Value3-5/16"
AttributeM	ValueM56 mm	ValueM56
AttributeN	Value32 mm	Value1-1/4"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

STARPOINT VRS-F M64 20t

Műszaki adatok

Attribute	Value	Value
AttributeTömeg	Value17.79 kg	Value39.22 lbs
AttributeTehebírás	Value20000 kg	Value44090 lbs
AttributeT	Value176 mm	Value6-15/16"
AttributeB	Value55 mm	Value2-5/32"
AttributeC	Value48 mm	Value1-7/8"
AttributeD	Value120 mm	Value4-3/4"
AttributeE	Value122 mm	Value4-13/16"
AttributeG	Value157 mm	Value6-3/16"
AttributeI	Value90 mm	Value3-17/32"
AttributeK	Value228 mm	Value9"
AttributeL	Value96 mm	Value3-25/32"
AttributeM	ValueM64 mm	ValueM64
AttributeN	Value36 mm	Value1-27/64"

Letölthető fájlok

2D CAD File (DXF)3D CAD File (IGS)3D CAD File (STP)

Egyéb termékek, termékadatok és specifikációk

Megtekintheti őket a katalógusainkban vagy felmerült kérdéseivel vegye fel velünk a kapcsolatot!

Katalógusok Kapcsolat
